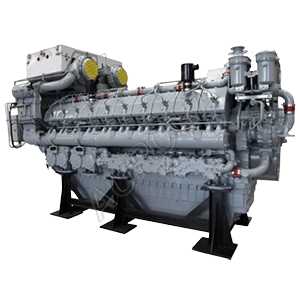

CHD622V20CRSTC HND engine, with a rated power of 3600kW at 1800rpm, a bore of 170mm and a stroke of 215mm, is a reliable and efficient 20 cylinder, 4 stroke, V-type diesel engine. The engine is independently developed and manufactured by Henan Diesel Engine Industry Co., Ltd., it is intended for marine, power generation, and industrial applications, offering a solid solution for various power needs while benefiting from the advanced engineering of Deutz.
CHD622V20CRSTC Scope of Supply
- Air filter
- Turbocharger
- Air cooler
- Oil pump
- Oil filter
- Oil cooler
- Seawater pump
- Heat exchanger
- Starter motor
CHD622V20CRSTC (3600kW/1800rpm) Technical Parameter
| Engine model | CHD622V20CRSTC |
| Rated power | 3600kW |
| Rated speed | 1800rpm |
| Bore/stroke | 170/215mm |
| Type | 4 stroke, V-type, 20 cylinders |
| Displacement | 97.6L |
| Compression ratio | 15:1 |
| Min. no load steady speed (Idle speed) | 600-750rpm |
| Ignition speed (20℃) | 150rpm |
| Fuel consumption (g/kW*h) | 210g/kW*h |
| Oil consumption | ≤0.7g/kW*h |
| Crankshaft direction | Anti-clockwise (view from flywheel end) |
| Engine overall dimension | 4013x1665x2221mm |
| Engine weight | 10500kg |
| Emission standard | Tier II / C2 |
Optional Configuration
- Silencer
- Manual pre-lube oil pump or electric pre-lube oil pump
- Freshwater pre-heater device
- Electric starter or air starter
- PTO
- Classification society
- Emission standard
- CHD622V20CRSTC (3600kW/1800rpm) Engine Datasheet
- CHD622V20CRSTC Diesel Engine Outline Size Installation Diagram
- CHD622V20CRSTC Diesel Engine Operation Manual
- CHD622V20CRSTC Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
