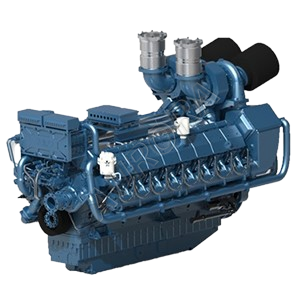

CHD620V12CR HND engine, with a rated power of 1304kW at 1650rpm, a bore of 170mm and a stroke of 195mm, is a reliable and efficient 12 cylinder, 4 stroke, V-type diesel engine. The engine is independently developed on the basis of TBD620 series products. Manufactured by Henan Diesel Engine Industry Co., Ltd., it is intended for marine, power generation, and industrial applications, offering a solid solution for various power needs while benefiting from the advanced engineering of Deutz.
CHD620V12CR Scope of Supply
- Air filter
- Turbocharger
- Air cooler
- Oil pump
- Oil filter
- Oil cooler
- Seawater pump
- Heat exchanger
- Starter motor
CHD620V12CR (1304kW/1650rpm) Technical Parameter
| Engine model | CHD620V12CR |
| Rated power | 1304kW |
| Rated speed | 1650rpm |
| Bore/stroke | 170/195mm |
| Type | 4 stroke, V-type, 12 cylinders |
| Displacement | 53.11L |
| Compression ratio | 13.5:1 |
| Min. no load steady speed (Idle speed) | 600-750rpm |
| Ignition speed (20℃) | 150rpm |
| Fuel consumption (g/kW*h) | 195g/kW*h |
| Oil consumption | ≤0.7g/kW*h |
| Crankshaft direction | Anti-clockwise (view from flywheel end) |
| Engine overall dimension | 2990x1537x2182mm |
| Engine weight | 5400kg |
| Emission standard | Tier II / C2 |
Optional Configuration
- Silencer
- Manual pre-lube oil pump or electric pre-lube oil pump
- Freshwater pre-heater device
- Electric starter or air starter
- PTO
- Classification society
- Emission standard
- CHD620V12CR (1304kW/1650rpm) Engine Datasheet
- CHD620V12CR Diesel Engine Outline Size Installation Diagram
- CHD620V12CR Diesel Engine Operation Manual
- CHD620V12CR Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
