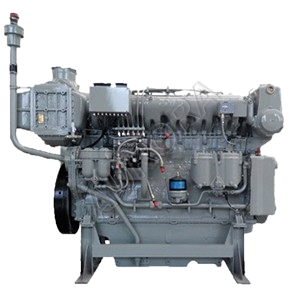

CHD604BL6CR engine, with a rated power of 450kW at 1500rpm, a bore of 170mm and a stroke of 195mm, is a reliable and efficient 6 cylinder, 4 stroke, inline diesel engine. The engine is independently developed on the basis of TBD604 series products. Manufactured by Henan Diesel Engine Industry Co., Ltd., it is intended for marine, power generation, and industrial applications, offering a solid solution for various power needs while benefiting from the advanced engineering of Deutz.
CHD604BL6CR Scope of Supply
- Air filter
- Turbocharger
- Air cooler
- Oil pump
- Oil filter
- Oil cooler
- Seawater pump
- Heat exchanger
- Starter motor
CHD604BL6CR (450kW/1500rpm) Technical Parameter
| Engine model | CHD604BL6CR |
| Rated power | 450kW |
| Rated speed | 1500rpm |
| Bore/stroke | 170/195mm |
| Type | 4 stroke, inline-type, 6 cylinders |
| Displacement | 26.52L |
| Compression ratio | 14.2:1 |
| Min. no load steady speed (Idle speed) | 600-750rpm |
| Ignition speed (20℃) | 150rpm |
| Fuel consumption (g/kW*h) | 200g/kW*h |
| Oil consumption | ≤0.7g/kW*h |
| Crankshaft direction | Anti-clockwise (view from flywheel end) |
| Engine overall dimension | 2347x1104x2064mm |
| Engine weight | 2650kg |
| Emission standard | Tier II / C2 |
Optional Configuration
- Silencer
- Manual pre-lube oil pump or electric pre-lube oil pump
- Freshwater pre-heater device
- Electric starter or air starter
- PTO
- Classification society
- Emission standard
- CHD604BL6CR (450kW/1500rpm) Engine Datasheet
- CHD604BL6CR Diesel Engine Outline Size Installation Diagram
- CHD604BL6CR Diesel Engine Operation Manual
- CHD604BL6CR Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
