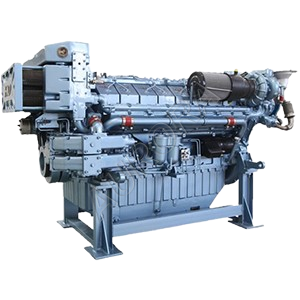

CHD316V16 HND Engine, with a rated power of 624kW at 1500rpm, a bore of 132mm and a stroke of 160mm, is a reliable and efficient 16 cylinder, 4 stroke, V-type diesel engine. The engine is independently developed on the basis of 616 series diesel engines of DEUTZ-MWM in Germany. Manufactured by Henan Diesel Engine Industry Co., Ltd., it is intended for marine, power generation, and industrial applications, offering a solid solution for various power needs while benefiting from the advanced engineering of Deutz.
CHD316V16 Scope of Supply
- Air filter
- Turbocharger
- Air cooler
- Oil pump
- Oil filter
- Oil cooler
- Seawater pump
- Heat exchanger
- Starter motor
CHD316V16 (624kW/1500rpm) Technical Parameter
| Engine model | CHD316V16 |
| Rated power | 624kW |
| Rated speed | 1500rpm |
| Bore/stroke | 132/160mm |
| Type | 4 stroke, V-type, 16 cylinders |
| Displacement | 33.44L |
| Compression ratio | 15:1 |
| Min. no load steady speed (Idle speed) | 600-750rpm |
| Ignition speed (20℃) | 150rpm |
| Fuel consumption (g/kW*h) | 198g/kW*h |
| Oil consumption | ≤0.7g/kW*h |
| Crankshaft direction | Anti-clockwise (view from flywheel end) |
| Engine overall dimension | 2585x1360x1487mm |
| Engine weight | 3450kg |
| Emission standard | Tier II / Tier III |
Optional Configuration
- Silencer
- Manual pre-lube oil pump or electric pre-lube oil pump
- Freshwater pre-heater device
- Electric starter or air starter
- PTO
- Classification society
- Emission standard
- CHD316V16 (624kW/1500rpm) Engine Datasheet
- CHD316V16 Diesel Engine Outline Size Installation Diagram
- CHD316V16 Diesel Engine Operation Manual
- CHD316V16 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
