HND-MWM TBD620V8 Generator Set delivers 800kW (1000kVA) of power at 50Hz, ideal for marine power stations and pump sets. Featuring a 8-cylinder, 4-stroke V-type TBD620V8 auxiliary engine. The licensed technology from Deutz-MWM ensures high performance, fuel efficiency, and durability. Manufactured by Henan Diesel Engine Industry Co., Ltd.
HND-MWM TBD620V8 Genset
- Genset model: CCFJ800J
- Prime power: 800kW (1000kVA)
- Rated voltage: 400V
- Frequency: 50Hz
- Rated speed: 1500rpm
- Power factor: 0.8 (lagging)
- Dimension: 4000x1650x2400mm
- Weight: 10600kg

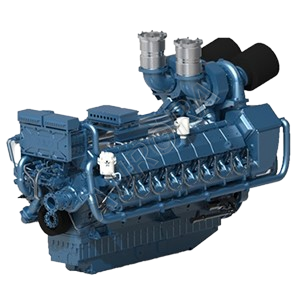

TBD620V8 Auxiliary Diesel Engine
- Auxiliary engine model: TBD620V8
- Engine rated power: 880kW
- Engine rated speed: 1500rpm
- Bore/stroke: 170/195mm
- Type: 4 stroke, V-type, 8 cylinders
- Displacement: 35.41L
- Compression ratio: 13.5:1
- Min. no load steady speed (Idle speed): 900-1050rpm
- Ignition speed (20℃): 150rpm
- Fuel consumption (g/kW*h): 200g/kW*h
- Oil consumption: ≤0.7g/kW*h
- Crankshaft direction: Anti-clockwise (view from flywheel end)
- Engine overall dimension: 2494x1532x2025mm
- Engine weight: 3700kg
- Emission standard: Tier II / Tier III
Alternator & Controller
The 800kW 1000kVA 50Hz HND-MWM TBD620V8 Diesel Generator Set is paired with a high-performance alternator and controller, ensuring stable and efficient power generation. These components are selected and integrated to match the engine’s capabilities, providing seamless operation in demanding environments.
- 800kW 1000kVA 50Hz HND-MWM TBD620V8 Generator Set Datasheet
- TBD620V8 (880kW/1500rpm) Auxiliary Engine Datasheet
- TBD620V8 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
