HND-MWM TBD604BL6 Generator Set delivers 500kW (625kVA) of power at 50Hz, ideal for marine power stations and pump sets. Featuring a 6-cylinder, 4-stroke inline-type TBD604BL6 auxiliary engine. The licensed technology from Deutz-MWM ensures high performance, fuel efficiency, and durability. Manufactured by Henan Diesel Engine Industry Co., Ltd.
HND-MWM TBD604BL6 Genset
- Genset model: CCFJ500J
- Prime power: 500kW (625kVA)
- Rated voltage: 400V
- Frequency: 50Hz
- Rated speed: 1500rpm
- Power factor: 0.8 (lagging)
- Dimension: 3830x1350x2130mm
- Weight: 5500kg

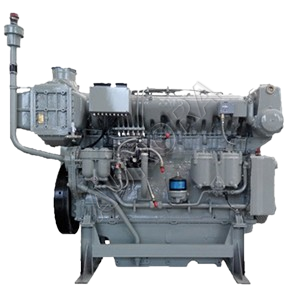

TBD604BL6 Auxiliary Diesel Engine
- Auxiliary engine model: TBD604BL6
- Engine rated power: 550kW
- Engine rated speed: 1500rpm
- Bore/stroke: 170/195mm
- Type: 4 stroke, inline-type, 6 cylinders
- Displacement: 26.52L
- Compression ratio: 14.2:1
- Min. no load steady speed (Idle speed): 900-1050rpm
- Ignition speed (20℃): 150rpm
- Fuel consumption (g/kW*h): 205g/kW*h
- Oil consumption: ≤0.7g/kW*h
- Crankshaft direction: Anti-clockwise (view from flywheel end)
- Engine overall dimension: 2240x1104x2064mm
- Engine weight: 2550kg
- Emission standard: Tier II / Tier III
Alternator & Controller
The 500kW 625kVA 50Hz HND-MWM TBD604BL6 Diesel Generator Set is paired with a high-performance alternator and controller, ensuring stable and efficient power generation. These components are selected and integrated to match the engine’s capabilities, providing seamless operation in demanding environments.
- 500kW 625kVA 50Hz HND-MWM TBD604BL6 Generator Set Datasheet
- TBD604BL6 (550kW/1500rpm) Auxiliary Engine Datasheet
- TBD604BL6 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
