HND-MWM TBD234V8 Generator Set delivers 280kW (350kVA) of power at 60Hz, ideal for marine power stations and pump sets. Featuring a 8-cylinder, 4-stroke V-type TBD234V8 auxiliary engine. The licensed technology from Deutz-MWM ensures high performance, fuel efficiency, and durability. Manufactured by Henan Diesel Engine Industry Co., Ltd.
HND-MWM TBD234V8 Genset
- Genset model: CCFJ280J
- Prime power: 280kW (350kVA)
- Rated voltage: 440V
- Frequency: 60Hz
- Rated speed: 1800rpm
- Power factor: 0.8 (lagging)
- Dimension: 2600x1234x1870mm
- Weight: 3100kg

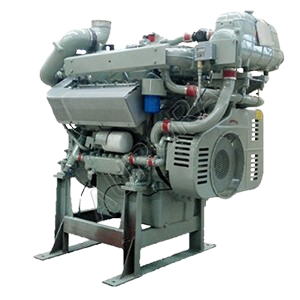

TBD234V8 Auxiliary Diesel Engine
- Auxiliary engine model: TBD234V8
- Engine rated power: 303kW
- Engine rated speed: 1800rpm
- Bore/stroke: 128/140mm
- Type: 4 stroke, V-type, 8 cylinders
- Displacement: 14.4L
- Compression ratio: 15:1
- Min. no load steady speed (Idle speed): 900-1050rpm
- Ignition speed (20℃): 150rpm
- Fuel consumption (g/kW*h): 203g/kW*h
- Oil consumption: ≤0.7g/kW*h
- Crankshaft direction: Anti-clockwise (view from flywheel end)
- Engine overall dimension: 1811x1103x1690mm
- Engine weight: 1500kg
- Emission standard: Tier II / Tier III
Alternator & Controller
The 280kW 350kVA 60Hz HND-MWM TBD234V8 Diesel Generator Set is paired with a high-performance alternator and controller, ensuring stable and efficient power generation. These components are selected and integrated to match the engine’s capabilities, providing seamless operation in demanding environments.
- 280kW 350kVA 60Hz HND-MWM TBD234V8 Generator Set Datasheet
- TBD234V8 (303kW/1800rpm) Auxiliary Engine Datasheet
- TBD234V8 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
